Durite

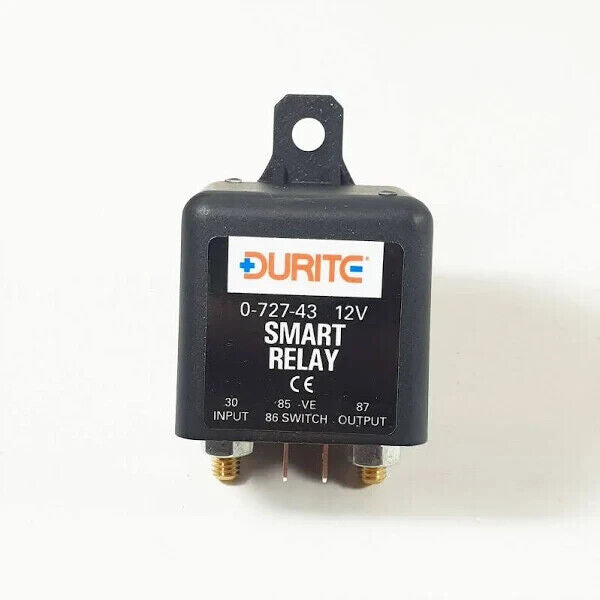

Durite Split Charge Relay Smart Programmable Voltage Sensitive 12V 200A 0-727-43
Durite Split Charge Relay Smart Programmable Voltage Sensitive 12V 200A 0-727-43
Regular price
£65.99 GBP
Regular price
£0.00 GBP
Sale price
£65.99 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
12V Smart Programmable Voltage Sensitive Relay 200A
This listing is for a 12 volt 200 amp relay designed to be used with the latest range of vehicles fitted with smart alternators and regenerative braking systems. With 9 programmes allowing the user to to set the charging and protection voltages to suit their requirements. This can therefore be used for charging the secondary battery or protecting the main battery from a high drain circuit.
This has the facility for a manual override allowing both batteries to be used to start the engine or to make safe a piece of equipment on the protected circuit before power is lost.
This has the facility for a manual override allowing both batteries to be used to start the engine or to make safe a piece of equipment on the protected circuit before power is lost.
Type
- Split Charge Relay
Nominal Voltage
- 12 volt dc
Maximum Voltage
- 16.5 volt dc
Maximum Current
- 200A
Standby Current
-2mA
Terminals
-2 x M6 Bolts + 2 x 6.3mm Blades
